Ultimate Fence Slat for Chain Link Fence Double Wall – 4 Wings 98% Privacy


Chain Link Fence Slats to provide Privacy for Fences

Number of Bags (each bag covers approximately 10 linear feet of fence)
Shipping Included (see details below)

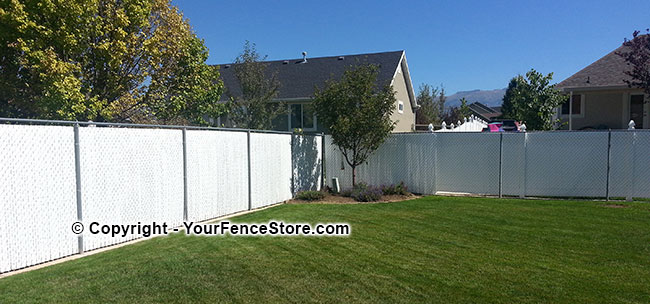

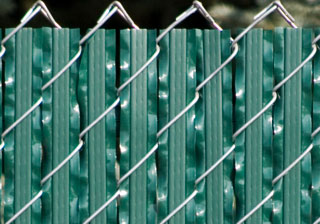

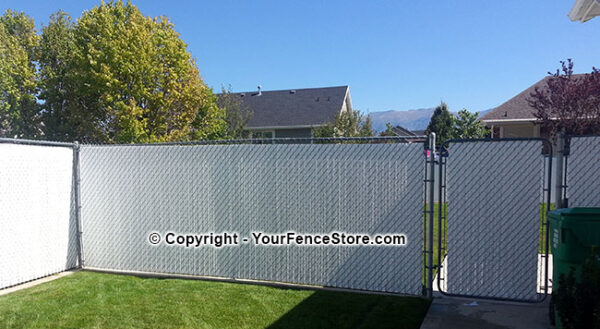

The Ultimate Fence Slat is the best privacy slat for a chain link fence with a two inch diamond. Double wall tubular body with center legs for extra durability and support. With the proven quality and durability of our standard slats plus four unique “wings” for extra screening and security. Flexible and resilient wing portions are positioned on each side of the slat body.

Shipping Included in the Price: (48 contiguous states only – additional shipping for Hawaii and Alaska). There may be an additional fee when ordering only 1 or 2 bags of fence slats.

Specifications: Ultimate Fence Slat is manufactured 3″ shorter than the overall height of the fence (e.g. 6 ft is 69″ long). The wind load and privacy factor is approximately 98% for a 2″ diamond and approximately 92% for a 2-1/4″ diamond. Can be used for a 2-3/8″ diamond but the privacy will not be as much. The slat width is approximately 1-7/16″.

Coverage: Each bag contains 82 pieces. For a 2 inch diamond, each bag will cover approximately 10 linear feet of fence (depends on how tight your fence is stretched – the average chain link fence with a 2 inch diamond has 41 diamonds for every 10 linear feet of fence). The horizontal locking devices are included (3 pieces) and will be enough for ten feet of fence.

Please Note: Depending on your shipping address and quantity ordered, there may be additional shipping charges for 8 ft foot and higher fence slats. If there is an extra fee, you will be contacted after your order is received.

Vinyl Coated Chain Link Fence Notes: Installing the Ultimate Slat in some vinyl coated colored chain link fence may be more difficult to install depending on the diamond/mesh size, gauge of wire and how tight the fence is stretched. When sliding the slat down into the chain link fence, the wing portion on the slat may cause friction against the vinyl coated chain link fence making it difficult to insert. We have had hundreds of customers install this slat with vinyl coated chain link fence without a problem, but there have been a few who could not get the slat to insert.

Durability: Our slats are also resistant to severe weather conditions, salt water, sand, road dirt, most acids, alcohol, alkaline, ammonia, petroleum distillates, and common environmental pollutants.

Other names for chain link fence slats: fence fillers, fence inserts, pvc slats, vertical slats, chain link privacy, and privacy fillers.

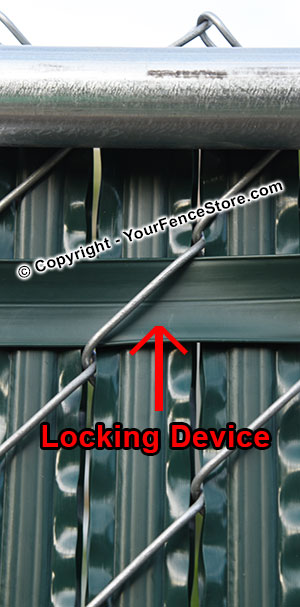

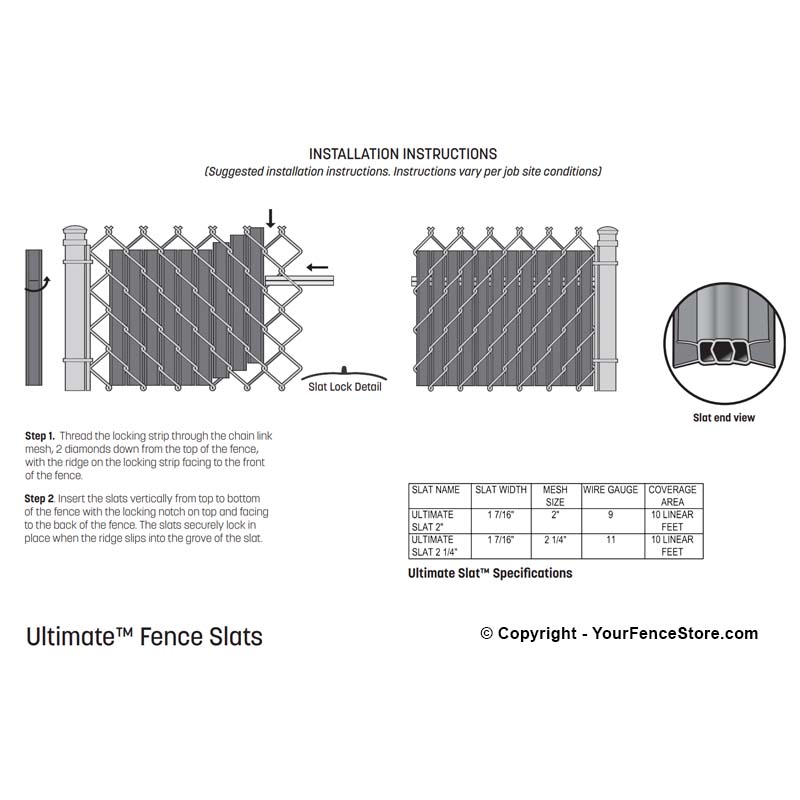

Installation: Insert the patented locking strip horizontally through the chain link fence (2nd diamond down from the top). Insert the Ultimate Slat vertically down through the chain link until the notch on the slat snaps itself into the locking strip. Three locking strips are included with each bag of fence slats for a total of ten feet.

Made in the USA: Be aware of some non-USA made fence slats that may fade and discolor. Our slats made of virgin High Density Polyethylene (HDPE) are made in the USA and have UV inhibitors (UV resistant color concentrates) to add color protection and guard against cracking, chalking, and fading in the sunlight.

Instructions for measuring the diamond size for a chain link fence.

How do I know what fence slat will fit into my fence?

Comparison Chart for Chain Link Fence Slats

Weight .0001 lbs
Dimensions .0001 × .0001 × .0001 in

Manufacturer's 25-year limited pro-rata warranty.

Made in the USA


Privacy/Shade Percent



4 feet high, 5 feet high, 6 feet high, 7 feet high, 8 feet high
